Multihead weigher packing machine is a multi-purpose packaging machine integrating weighing, feeding, filling and bag making. It has the advantages of wide application range, accurate measurement, beautiful packaging and high efficiency.
It is widely used in weighing and packaging of various granular, strip and block materials. For example: nuts, candy, jelly, beans, frozen food, pet food, snack food, hardware and daily chemical materials, etc.
High degree of automation: It can automatically complete the whole packaging process of measurement, feeding, filling and bag making, date printing, and finished product output.
High-end electrical components, accurate measurement and high efficiency: It is controlled by a well-known brand PLC full computer control system, and the combination weigher and packaging machine is used to achieve the perfect combination of high precision and high speed. Through computer calculation, the best combination is instantly selected from the rich weight combinations. The LCD display operating system in English and other languages clearly displays the working status and operation instructions.
Simple, safe and stable operation: Using high-precision servo film transport system, the film is transported smoothly, with the photoelectric automatic positioning and tracking system, the positioning accuracy is high. Intelligent digital temperature control system, stable temperature difference control, equipped with toothed sealer to ensure firm sealing.
Production data records: It has a powerful automatic data statistics function, and records indicators such as the quantity, qualification rate and single bag error of each batch of production.
Multifunction:

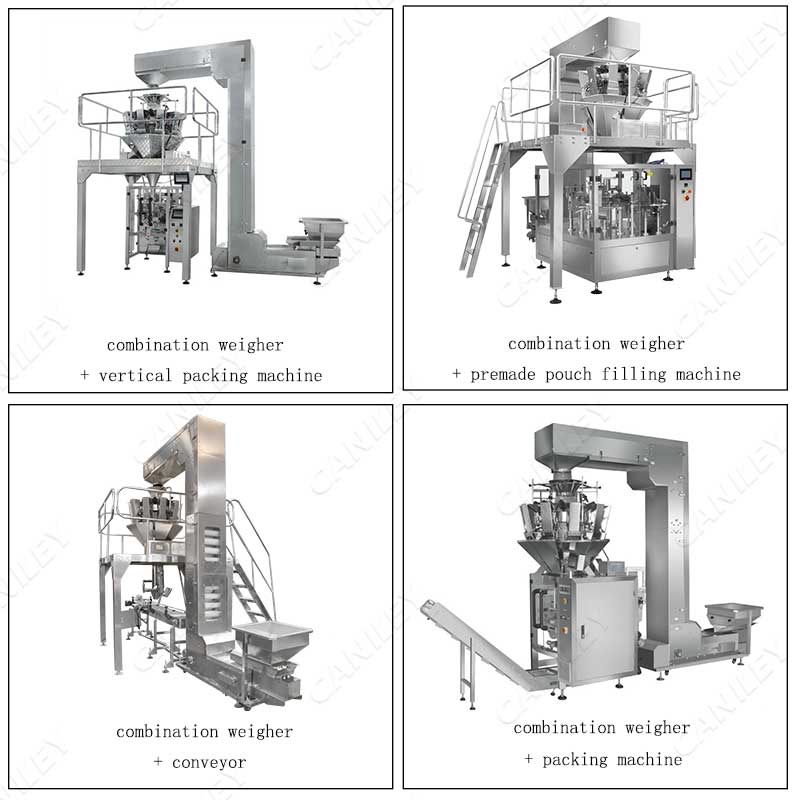

By changing part of the structure of the multihead weigher packing machine, the packaging of various types of containers such as bags and bottles can be realized.
Model | CK-LK720 | CK-LK520 | CK-LK420 |
Film width | max 720mm | max 520mm | max 420mm |
Bag width | 110-350mm | 90-250mm | 80-200mm |
Bag length | 100-420mm | 80-350mm | 50-300mm |
Packing speed | 10-50bags/min | 10-70bags/min | 15-80bags/min |
Packing range | 150-4000ml | 150-2000ml | 150-1500ml |
Film thickness | 0.04-0.10mm | 0.04-0.10mm | 0.04-0.10mm |
Power | 4kw/220v 50-60Hz | 3kw/220v 50-60Hz | 2.5kw/220v 50-60Hz |
Machine size | 1780*1350*2000mm | 1430*1200*1700mm | 1400*970*1700mm |
Machine weight | 800kg | 650kg | 450kg |
Air consumption | 0.8m³/min 0.8mpa | 0.4m³/min 0.6mpa | 0.4m³/min 0.6mpa |
Packing Material | bopp/cpp, bopp/vmcpp, bopp/pe, pet/vmpet/pe, ny/pe, pet/pet |
