Small Scale Liquid Bottle Filling Machine 16-20bottles/min

  • Speed: 16-20 Bottles/Min
  • Filling Volume Range:100-1000ml
  • Material: SUS304
  • Whatsapp: 0086-15515573212

The automatic liquid filling machine is a piston type filling machine used for filling liquid products. The machine uses a cylinder to push the piston, and the measurement is more accurate. It can realize the filling of liquids with different concentrations. The small scale bottle filling machine is widely used in medicine, cosmetics, food, chemical, pesticide and other industries.

Automatic Liquid Filling Machine Features:

1. Intelligent: The touch screen enters the filling volume, the weighing automatic feedback system, and the adjustment of the filling volume is completed with one key, which is convenient and quick.

2. High precision: Servo-driven piston filling ensures high precision and stability of filling volume. For example: 1000ml water error ± 1-2ml.

3. High speed: Servo-driven piston filling, the unique adjustable setting of filling speed first fast and then slow, ensures the high-speed stability of the piston movement stroke and filling speed.

4. High efficiency: The stepping motor drives the filling head to submerge filling to improve the control and efficiency of the machine. The adjustment of the filling volume is very convenient and fast. There are 5 groups of different parameter specifications stored, which can be directly and quickly called without repeated adjustment.

5. High performance: The use of full PTFE sealed pistons eliminates material leakage, wear, and corrosion resistance caused by the use of O-ring seals.

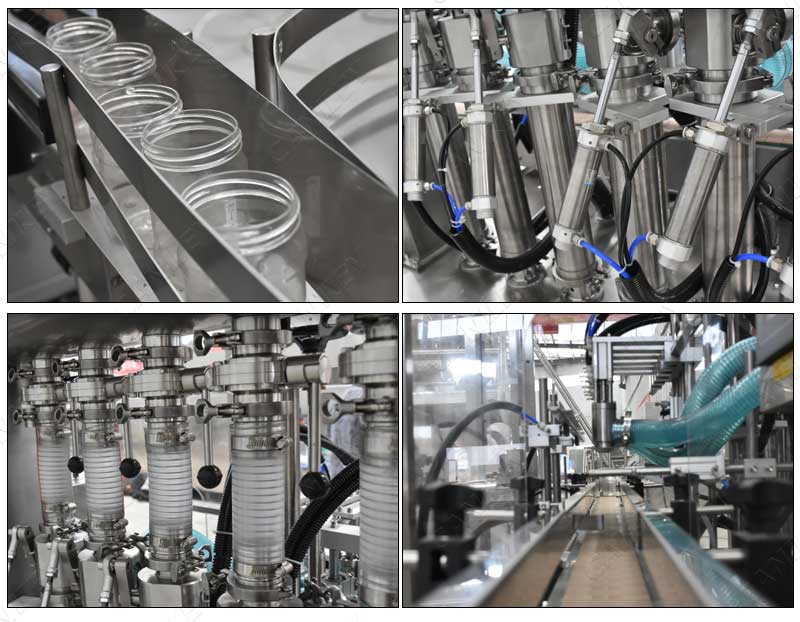

automatic liquid filling machine

During operation, the machine may be affected by the following factors:

1. Filling accuracy: compressed air stability, filling speed.

2. Filling speed: cylinder stroke, filling nozzle size and conveyor speed.

Technical Data




220V  50/60Hz

Air Pressure


SS Material


Pistion Material


Main Cylinder




Filling Volume Range


Filling Heads


Filling Speed

16-20 Bottles/Min

Machine Size (L*W* H)

 2000*1050*1900 mm
