High Viscosity Liquid Paste Filling Machine 4 Heads

  • Speed: 16-20 Bottles/Min
  • Filling Volume Range:100-1000ml
  • Material: SUS304
  • Whatsapp: 0086-15515573212
Features

The cylinder, casing and hopper of the paste filling machine are all made of stainless steel, the piston is made of polytetrafluoroethylene, and the pneumatic part adopts famous brand pneumatic components, which meet the requirements of GMP. The filling volume and filling speed can be adjusted arbitrarily, with high precision, simple structure and convenient operation. The high viscosity liquid filling machine is used in food, cosmetics, medicine and other industries. It is also suitable for filling viscous sauces such as chili sauce, peanut butter, sesame paste, jam and other substances with particles and high concentration in various condiments.



The high viscosity liquid filling machine can form an automatic filling line with automatic bottle unscrambler, inkjet printer, labeling machine, bottle collector and other equipment, and realize stable production speed and accurate material filling on the basis of high-efficiency automation. The paste filling machine’s stable quality can realize long-term operation.



Paste Filling Machine Features:

Wide range of applicable materials: not only suitable for filling small-grained paste such as chili sauce and jam, but also for filling various large-grained paste.

304 stainless steel large hopper: automatic stirring function, the special design of the blade can achieve uniform filling without sedimentation. The blade width is large, and the stirring is more powerful.

Motor: small vibration, low noise, high energy saving, small power consumption, long service life, excellent performance, and can work continuously for a long time.

High temperature resistance of 120 degrees Celsius: the transmission pipes are all made of silicone pipes, which are resistant to high temperatures of 120 degrees Celsius, do not contain plasticizers, and do not decompose at high temperatures.

Low noise: The paste filling machine is driven by a servo motor, and there are no consumables for 12,000 hours of use. The noise is lower than 40 decibels during normal filling.

The design is more humanized: the unique design of the motor box, the pull-out design, the safety is guaranteed, the motor is better protected, and the maintenance of the machine is easier.

The high viscosity liquid filling machine adopts power filling, which does not need to be equipped with high-level tanks, which simplifies the installation process, reduces production costs, and improves filling efficiency.

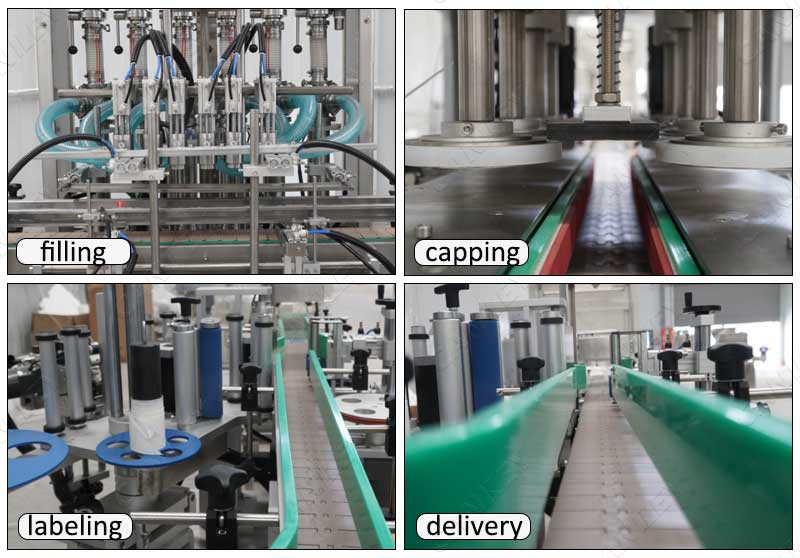

paste filling line


Technical Data

Model

CK-GT4T-4G

Voltage

220V  50/60Hz

Air Pressure

0.5-0.7Mpa

SS Material

SUS304

Pistion Material

PTFE

Main Cylinder

SMC(Japan)

PLC&Screen

Delta

Filling Volume Range

100-1000ml

Filling Heads

4

Filling Speed

16-20 Bottles/Min

Machine Size (L*W* H)

 2000*1050*1900 mm

Weight

350Kg
