This automatic bottle labeling machine is designed to achieve rationalized production goals. The labeling process is automated, with simple operation, fast production speed, uniform labeling position, beautiful and neat. The industrial bottle labeling machine is suitable for labeling round containers in pharmaceutical, chemical, food and other industries.
Put the bottle into the conveyor belt of the labeling machine, and the conveyor belt drives the bottle into the bottle separation area, and the conveyor mechanism continues to move. After the bottle is detected by the optical fiber, the photoelectric signal is transmitted to the PLC, and the output signal is output to the stepping motor after being processed by the PLC. The label is output by the stepping motor, and the label is attached to the bottle by the rolling mechanism. Labeled bottles enter the next process by the conveyor belt of the labeling machine.

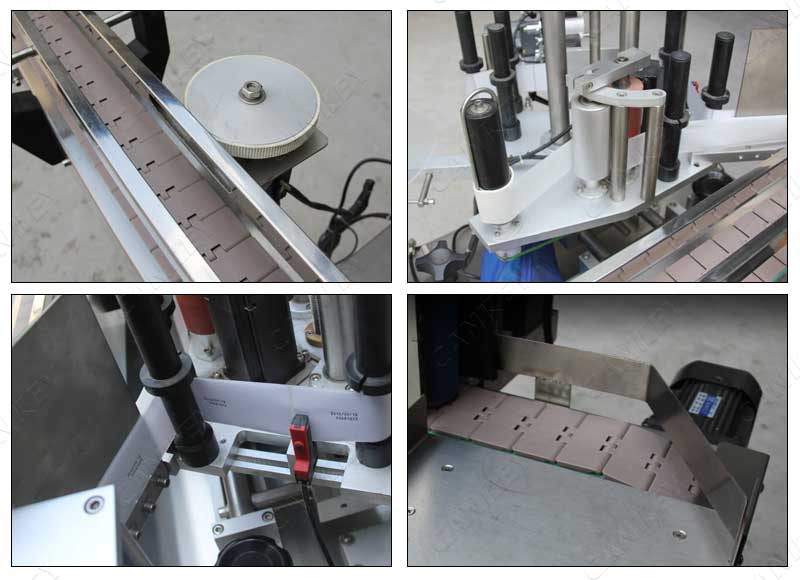

1. The overall material of the equipment is stainless steel and aluminum alloy, with stable design, convenient operation and elegant layout.
2. Using well-known electrical components, the quality is stable.
3. Apply transparent labels without blistering and wrinkling.
4. The labeling mechanism is driven by a high-speed servo motor to make the label adhere more firmly.
5. High-speed labeling engine configuration, the labeling speed can reach 120 m/min.
6. Labeling engine set with pre-labeling structure.
7. Equipped with bottle splitting screw structure, bottle splitting is stable.
8. The automatic bottle labeling machine is equipped with a material blocking stop function to prolong the service life of machine parts.
Poster speed | 0-200 PCS/min |
Bottle diameter | Ф 20 - Ф 100mm |
Bottle Height | 25-300mm |
Label size wide | 10-140mm |
Label size length | 15-200mm |
Labeling precision | +1mm(depending on the bottle degree, perpendicular round) |
Labeling Maximum diameter | Ф 300mm |
Power supply | AC110V/220V 500W |
Machine size | 2000X1300X1500mm |
Weight | 200kg |
