The cellophane wrapping machine is a device that uses BOPP film as the packaging material to fold the box into a three-dimensional hexahedron. It is widely used in transparent film packaging of cosmetics, medicines, food, health products, stationery and other product boxes.
The main functions of using cellophane wrapping are:
* Anti-counterfeiting
* Moisture proof
* Antifouling
It is very beneficial to the storage and transportation of products, and can improve the decoration effect and product quality.
Different types of cellophane overwrapping machines have different working principles, but the working steps are basically the same.
The packaging film is cut into a length that meets the requirements of the box by a special cutter. The box is transported to a predetermined position by a conveyor, and then wrapped and folded to form a designed packaging style. Finally, sealing and shaping, the whole wrapping process is completed.
This series of wrapping machines includes semi-automatic models and fully automatic models, which can meet the packaging needs of different users.

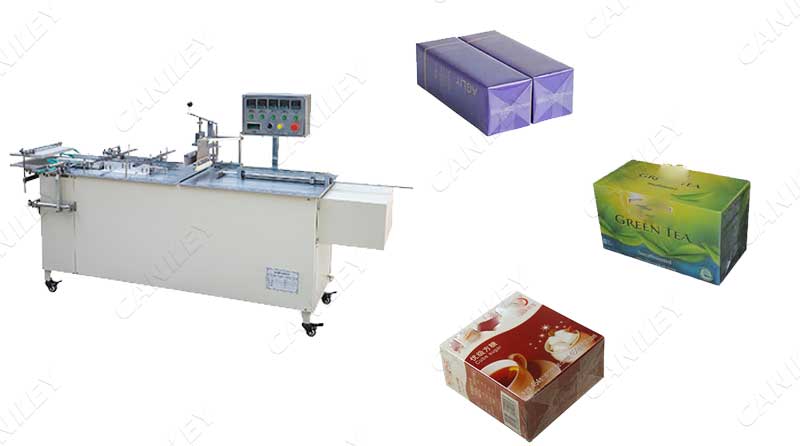

Semi-automatic Cellophane Wrapping Machine:
This model is suitable for small scale and new businesses.
1. Adjustable size, when the size of the box changes, change the mold and make appropriate adjustments to realize the wrapping of boxes of different sizes.
2. Low price. Compared to automatic models, semi-automatic is cheaper.
3. Small footprint.

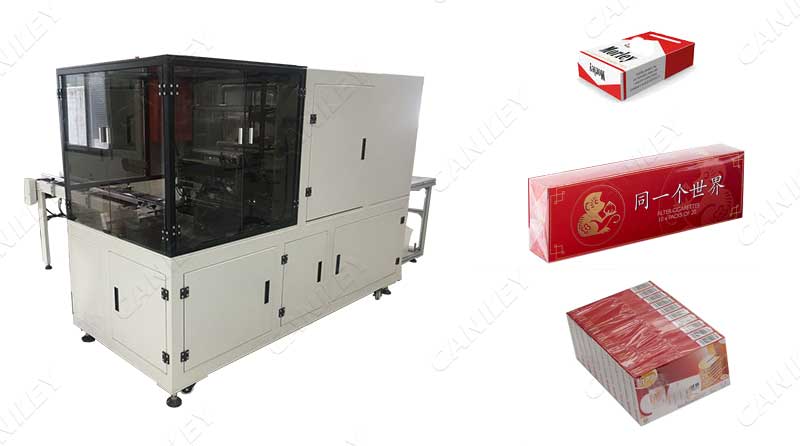

Automatic Cellophane Wrapping Machine:
Fully automatic models also include single-box wrapping and multi-box wrapping. Commonly used models are 300 (for a single pack) and 400 (for multiple packs, such as cigarettes).
1. Automated packaging process for faster packaging.
2. Using the new double insurance mechanism. the machine does not need to stop and other parts will not be damaged when the machine runs out of synchronization.
3. The original one-way hand crank device prevents the machine from being shaken in the opposite direction. And the handwheel will not turn during operation, making the operator safer.
4. The new double rotary film cutter can ensure that the cellophane wrapping machine can be used continuously for many years without sharpening the blade.
The price of this series of wrapping machines is about 8000-20000USD. The final price still depends on the customer's packaging requirements and suitable models.
Model | CK-BTB-300A | CK-BTB-400 |
Packaging material | film and gold tear tape | film and gold tear tape |
Packing speed | 40~80 boxes/min | 10-25 boxes/min |
Max.package size | (L)240*(W)120*(H)60mm | (L)300*(W)200*(H)100mm |
Power | 220V 50Hz 5kw | 220V 50Hz 5.5kw |
Machine weight | 500kg | 1250kg |
Machine dimensions | (L)2000*(W)700*(H)1400mm | (L)2380*(W)1050*(H)1680mm |
