Automatic Horizontal Cartoning Machine Manufacturers

  • Application: cosmetic, medicine, food, etc
  • Speed: 30-90 cartons/min
  • Overall dimension:L3100*W1100*H1900mm
  • Whatsapp: 0086-15515573212

High-speed automatic cartoning machine is suitable for packing medicines, bottles and similar items. Cartoning can be run continuously, the maximum speed can reach 90 boxes/min. High packaging efficiency, excellent quality, belongs to the high-tech products of mechatronics. It can automatically complete manual folding, carton opening, feeding, batch number printing, sealing and other work. The horizontal cartoning machine can be used alone, or it can be connected with blister packaging machines and other equipment to form a production line.


Automatic Cartoning Machine Working Principle:

The feeding of the automatic cartoning machine is generally divided into three entrances: the manual entrance, the bottle entrance and the box entrance. The entire process from box feeding to final packaging molding can be roughly divided into four stages.

1. The carton is fixed by a guide rail card position and opened with a push plate. At the same time, two card positions that can move forward will rise from the bottom and clamp the side of the carton from the front and rear directions, so that the box is opened at a right angle and Move forward to the loading area.

2. After filling in the loading area, the mechanism of the machine will fold the ears into the left and right guide rails, and then perform the closing action.

3. Before closing the lid, the mechanism will first bend the tongue of the carton, and then a push plate pushes the lid to bend, so that the tongue is inserted into the box and the lock is fastened.

4. Closing the lid is a key action, and the quality of the finished product has a lot to do with the structure of the carton and the accuracy of machine adjustment.

Horizontal Cartoning Machine Features:

1. The automatic cartoning machine adopts automatic feeding, manual folding, box opening, product and manual packing, box sealing and rejecting, etc. The structure is compact and reasonable, and the operation is easy.

2. Automatically remove packages without products or instructions to ensure the qualified rate of output products.

3. The cartoning machine has reasonable structure, stable transmission and low noise.

4. Man-machine interface operation, easy to set and use, reliable and stable system.

5. The horizontal cartoning machine has a complete detection system and safety protection device to ensure the packaging quality and operation safety.

6. According to customer requirements, the flip-up safety cover can be used, which is easy to operate and beautiful in appearance.

7. Need 1-2 operators.

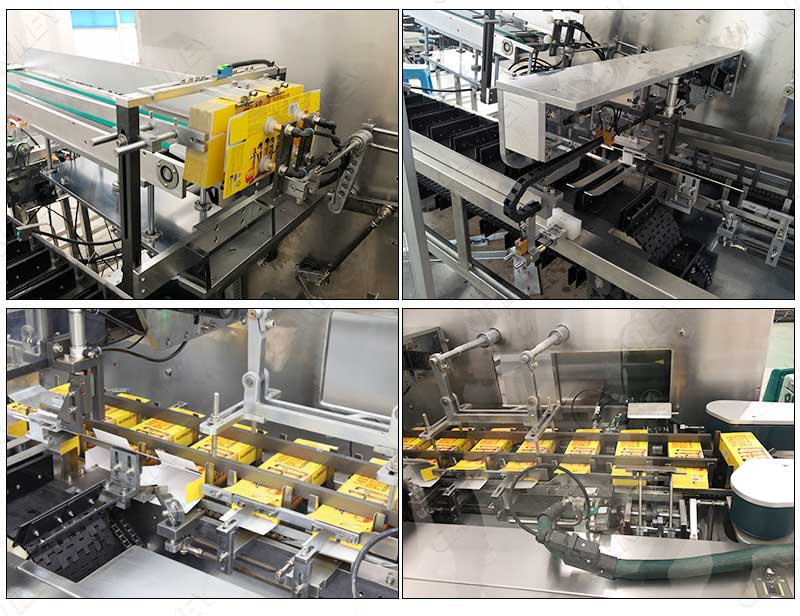

 cartoning machine manufacturer

Technical Data

Packing speed

30-90 cartons/min

Size of package


Cardboard requiremens for packages

250-350g/㎡ (up to the size of package)

Mass requirements




(80-250)mm X (90-170)mm



Motor power


Power supply

220V 50Hz

Max noise


Min air pressure


Gas consumption


Overall dimension
