How Does A Vertical Form Fill Seal Machine Work?

In the world of packaging, the efficiency and speed of product filling and sealing play a crucial role. One technology that has revolutionized this process is the Vertical Form Fill Seal (VFFS) machine. VFFS machines are widely used in various industries, including food, pharmaceuticals, and consumer goods. But how does a vertical form fill seal machine work?


Understanding the Components:

A VFFS machine consists of several key components that work together seamlessly to accomplish the packaging process. These components include:

Film Unwind: This section holds the roll of packaging film, which is the primary material used to create the package.

Film Tension Control: The film passes through a series of rollers and guides to ensure the correct tension, preventing any slack or tightness that may affect the package's quality.

Film Forming Section: The film passes through a forming collar, which shapes it into a tube. The width of the tube is adjustable based on the package size requirements.

Product Filling System: The product to be packaged is introduced into the film tube. This can be achieved using various methods, such as augers, volumetric fillers, or weigh scales, depending on the nature of the product.

Sealing System: Once the product is in the film tube, the machine seals the bottom of the package to create a bag. This is usually done using heat or pressure.

Cutting System: The machine cuts the film above the seal, separating the filled package from the remaining film roll. The cut length can be adjusted to create packages of different sizes.

Discharge Conveyor: The finished packages are moved out of the machine via a discharge conveyor, ready for further processing or distribution.

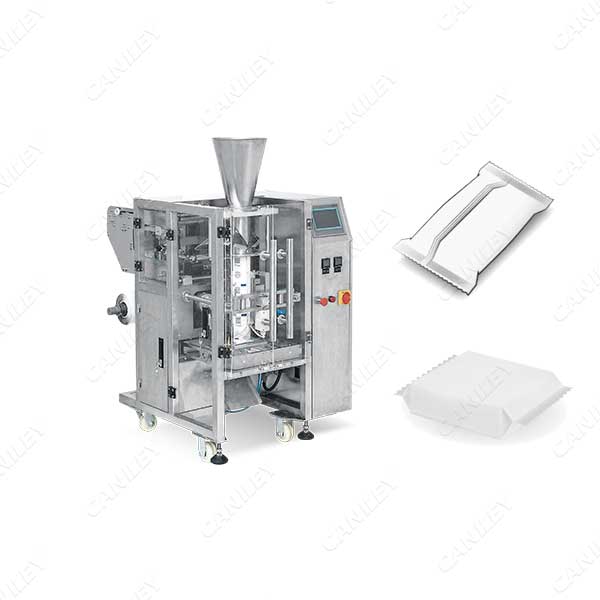

vertical packaging machine

The Step-by-Step Process:

Now that we have a basic understanding of the components, let's explore the step-by-step process involved in the operation of a VFFS machine:

Step 1: Film Unwinding

The roll of packaging film is mounted onto the machine, and the film unwinds, passing through the tension control system.

Step 2: Film Forming

The film travels through the forming collar, where it is shaped into a tube.

Step 3: Product Filling

The product is introduced into the film tube, either manually or automatically, using the appropriate filling mechanism.

Step 4: Bottom Seal Formation

The bottom of the package is sealed using heat or pressure. This creates a secure base for the product inside.

Step 5: Top Seal Formation

As the film continues to move upwards, the top portion of the package is sealed, ensuring the product remains enclosed.

Step 6: Cutting and Discharge

The machine cuts the film above the seal, separating the filled package from the roll. The finished packages are then discharged onto the conveyor for further processing.


Vertical Form Fill Seal machines have revolutionized the packaging industry, providing efficient and automated solutions for filling and sealing products. With their precise control and versatility, these machines enable the packaging of a wide range of products, ensuring freshness, hygiene, and extended shelf life.
